CAPRARI

Aerators, Mixers and Controls

Aerators

Oxy-Flow

Aeration assembly

Aeration assembly for processes of oxygenation and homogenization in treatment plants for residential, industrial and livestock farming waste water, in fish farming and aerated ponds. Also ideal for rainwater collection basins. Compact and simple to install, they are suitable for use in tanks of any shape and size.

Technické parametre: Power: 25 kW Return: 280 kg/h Water head: 5,5 m

Stiahnite si technický list Stiahnite si prospekt

ARS-ARS/S

Radial submersible aerators

Radial submersible aerators. They are an extremely flexible system of aeration, versatile and efficient in water treatment and in all cases where mixing with the addition of air is required. The machine’s compactness helps installation and maintenance without draining the tanks or stopping the systems.

The following are available on request: pressurized radial submersible aerators, surface aeration turbines and disc or porous pipes.

Technické parametre: Power: 51 kW Return: 87 kg/h Water head: 6 m

Stiahnite si technický list Stiahnite si prospekt

Mixers

CMVY CMDY CMDX

Horizontal submersible mixers

Horizontal submersible mixers with direct drive. For applications in nitrification/de-nitrification, sludge treatment and storage, disinfection tanks and industrial mixing. Available with cast-iron construction and stainless steel propeller or in a completely stainless steel version - AISI 316. Galvanic separation system for standard components providing effective protection against corrosion.

Technické parametre: Capacity: 316 l/s Power: 3 kW Axial thrust: 429 N

Stiahnite si technický list Stiahnite si prospekt

CMRY

Horizontal submersible mixers with gear

Horizontal submersible mixers with epicyclical gear between electric motor and propeller. For applications in nitrification/de-nitrification, sludge treatment and storage, disinfection tanks and industrial mixing. Galvanic separation system for standard components providing effective protection against corrosion.

Technické parametre: Capacity: 1860 l/s Power: 18.5 kW Axial thrust: 3725 N

Stiahnite si technický list Stiahnite si prospekt

CBAY

Horizontal submersible flow accelerators

Flow accelerators for applications in nitrification/denitrification tanks, disinfection and industrial mixing. Propeller with self-cleaning blades made of a composite material with high hydraulic efficiency. Galvanic separation system for standard components providing effective protection against corrosion.

Technické parametre: Capacity: 4890 l/s Power: 4 kW Axial thrust: 2900 N

Stiahnite si technický list Stiahnite si prospekt

Controls

URM

Universal Remote Management

URM, Universal Remote Management, a complete system of supervision and telecontrol purposefully designed for the management and treatment of liquids. It allows for the monitoring, control, and collection of data on the operation of all the devices that constitute a complex water system. Optimization of the system has led to savings in energy and water.

Thanks to its open architecture, the URM can function with allprotocols and can be easily installed in existing SCADA systems.

Stiahnite si prospekt

ELECTRIC PANELS

Control and Monitoring

Control and protection panels for electric pumps and motors (single and threephase). Constant pressure panels with microprocessors for electric pumps and for all installations that need pioneering systems for sophisticated control.

Stiahnite si prospekt

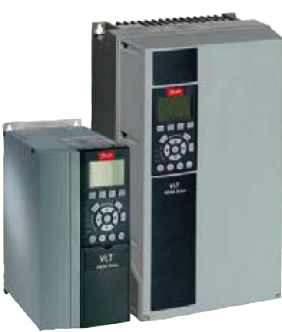

VSD

Frequency converter

Thanks to a vast range of standard and optional functions, the VLT® AQUA Drive frequency converter helps to cut down on the running costs of water treatment systems by regulating the start-up speed of the machines. This prevents the flow rate from fluctuating, allowing the pressure to be kept under precise control, avoiding pressure surges and reducing leaks

• energy saving
• smaller sized installations
• water pumping and treatment
• fast installation
• built-in RFI filters

Technické parametre: Power: 4 - 450 kW Frequency: 50 and 60 Hz

Stiahnite si prospekt

MotorGuard

MotorGuard - MG1/MG2 Control monitoring and protection device for electric motors

This control, monitoring and protection device ensures that Caprari Electric motors operate in the best possible way.
MotorGuard can be easily installed in the control panel and guarantees:

• Lower consumption
• A more reliable installation
• Longer pump life

Stiahnite si technický list
Stiahnite si prospekt
